API 610 Centrifugal Pumps

Home > Products > API 610 Centrifugal Pumps



API 610 Centrifugal Pumps


Designed by UK-based PumpXP in accordance with API 610 standards and manufactured by Vesta Pompa, this product range includes OH2, BB2, BB3, BB5, VS1, and VS6 types. These pumps are engineered to deliver high durability, safety, and performance for applications in the refinery, petrochemical, and power generation industries.




Pump Type Horizontal / Vertical Construction Type Typical Applications
OH2 Horizontal Single-stage, horizontal, end-suction Refineries, Chemical Processes
BB2 Horizontal Double-suction, horizontal, single-stage Petrochemical, General Industrial
BB3 Horizontal Multistage, axially-split casing High-pressure Process Pipelines
BB5 Horizontal Barrel-type, multistage High-pressure, Critical Processes

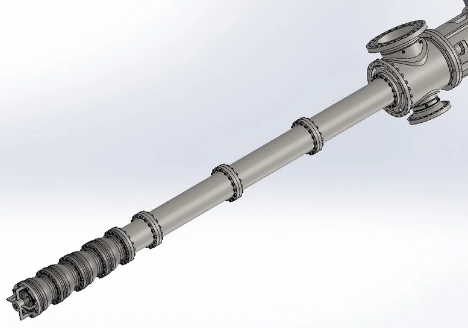

VS1 Vertical Single-casing, vertical line shaft Tank Farms, Below-ground Suction
VS6 Vertical Multistage, vertical line shaft Deep Wells, Vertical Process Installations

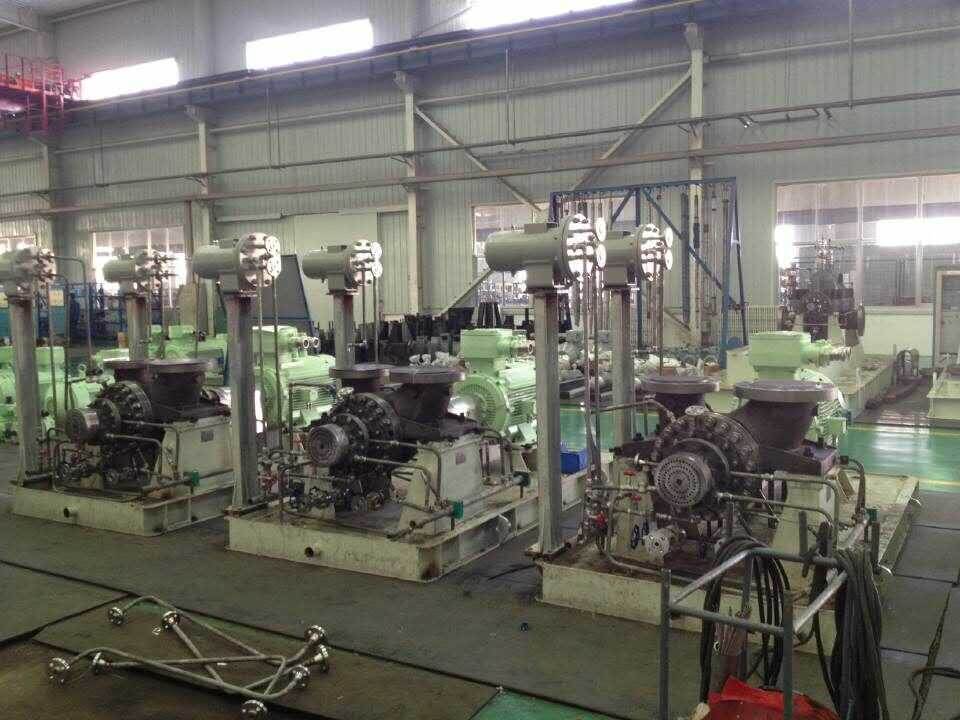

BB2



Horizontal, radially split, single-entry or multistage, between bearings, volute casing pump designed to API 610 (BB2 type). First stage optionally available in double entry design for low NPSH requirements. ATEX rated version available.

Operation limits

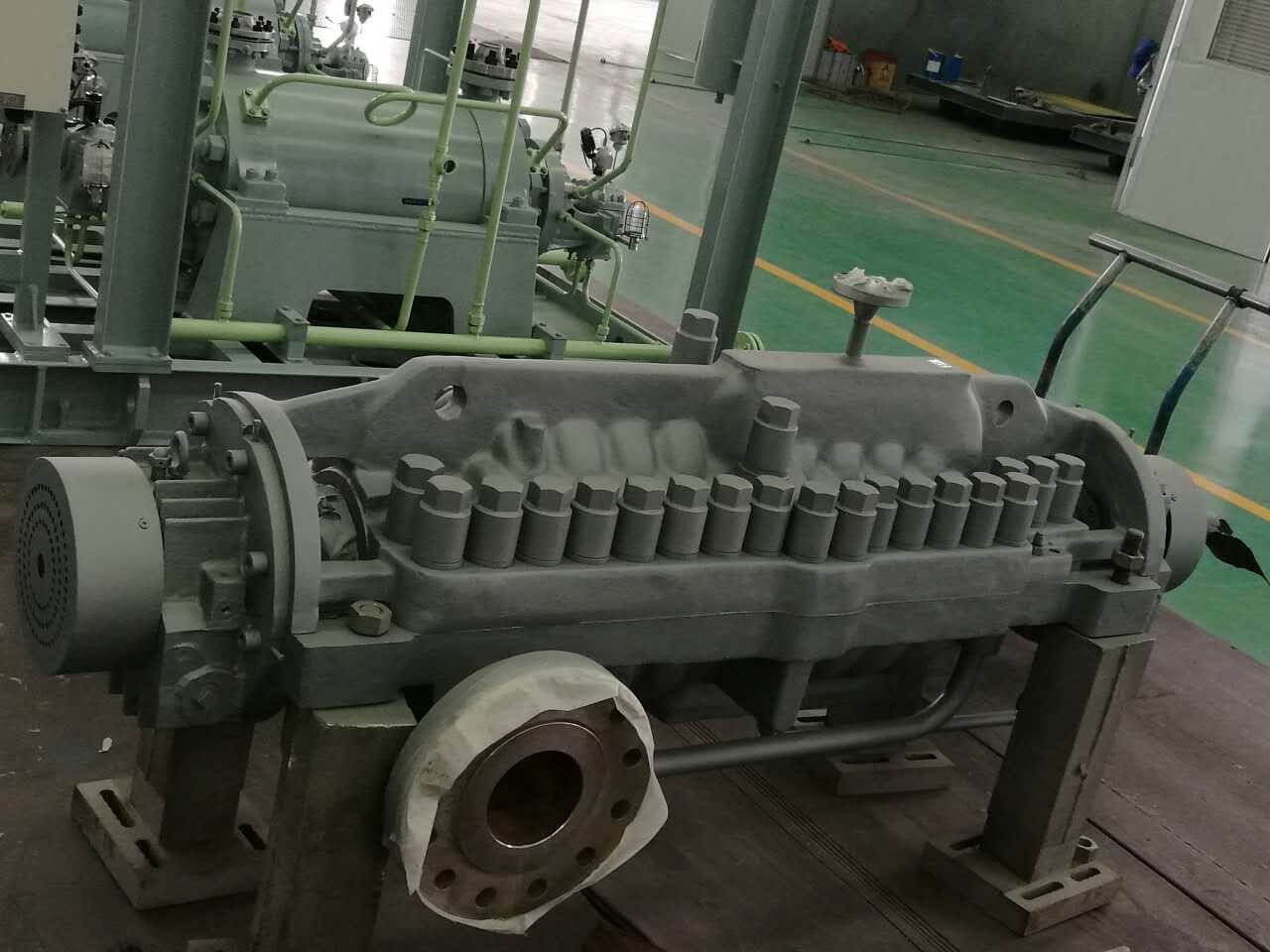

BB3

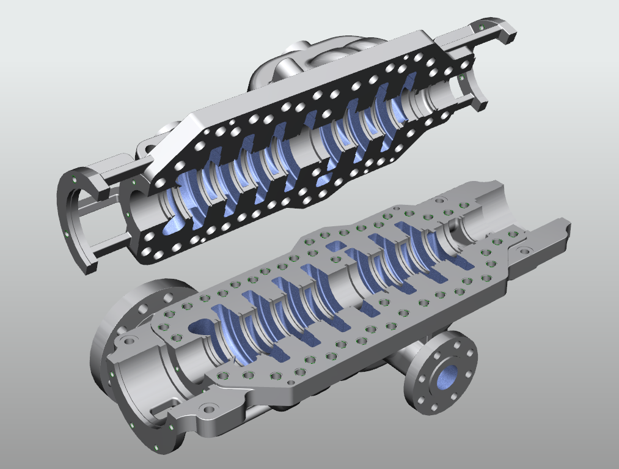

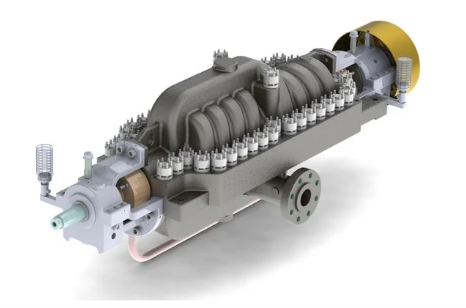

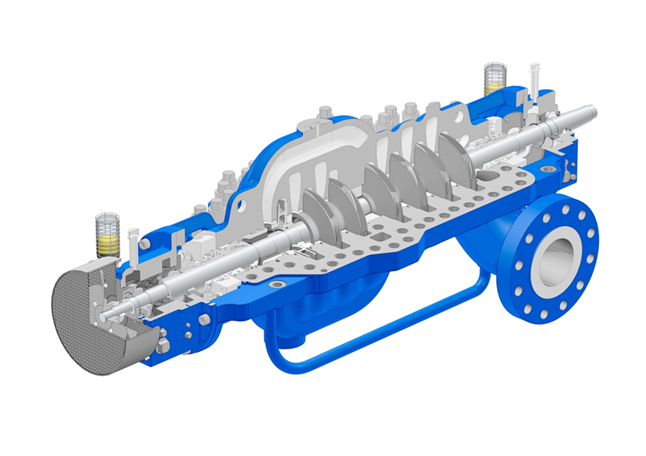

Horizontal, axially split, single-entry, multistage, between-bearings, volute casing pump with single casing and back-to-back impeller arrangement to API 610 (ISO 13709), type BB3. First stage optionally available in double-entry design for low NPSH requirements. ATEX-compliant version available.



Operation limits

Capacity to 1400 m³/h
Head to 1550m
Maximum Pressure to 155 bar

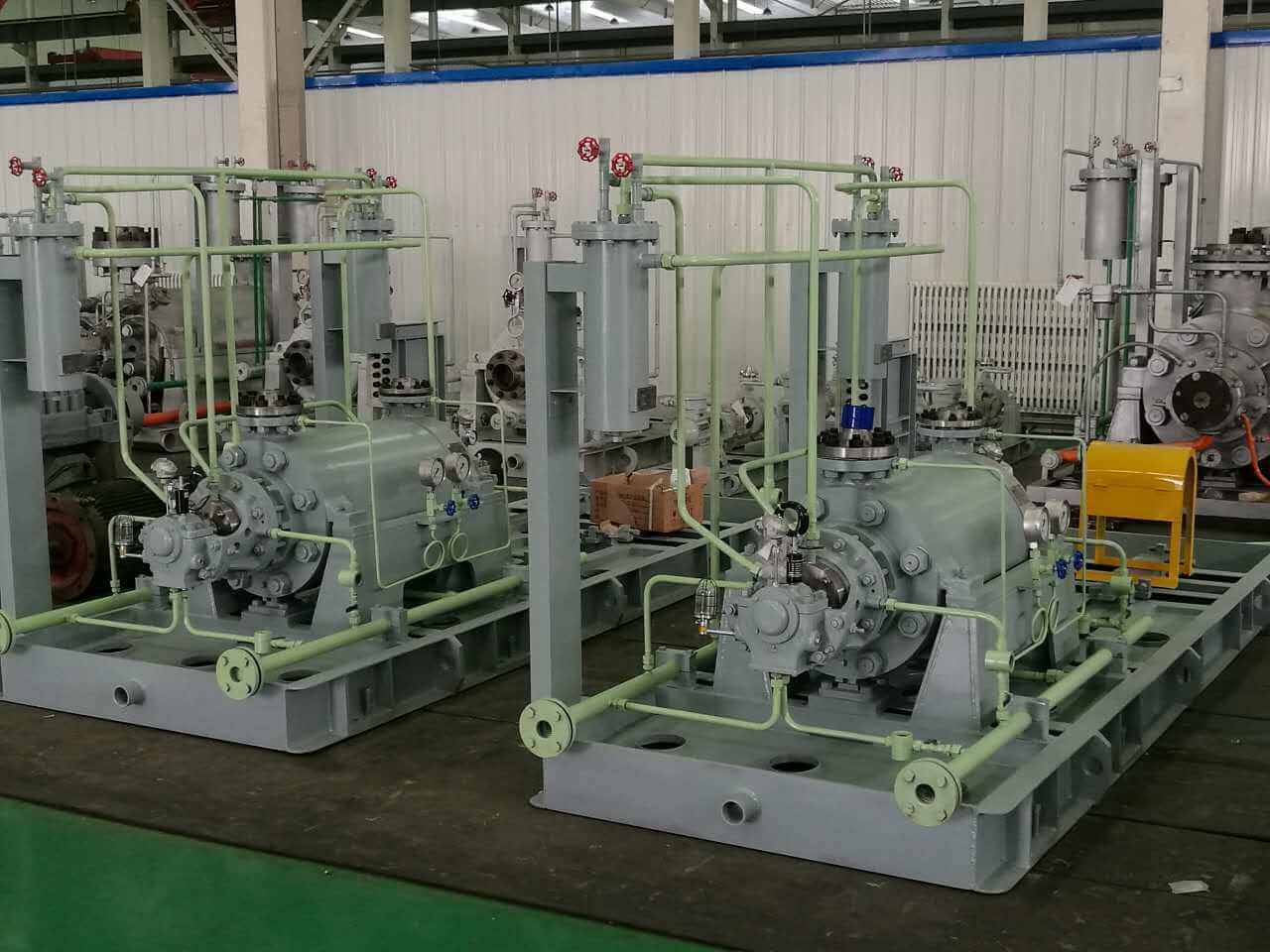

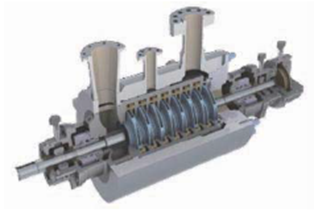

BB5

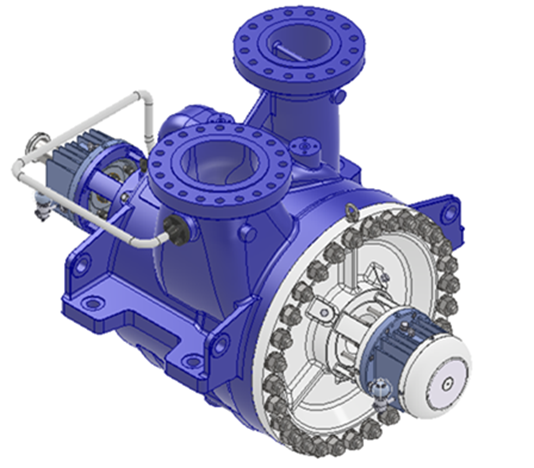

Horizontal, axially split, single-entry, multistage, between bearings, volute casing or diffuser pump designed to API 610 (BB5 type). First stage optionally available in double entry design for low NPSH requirements. ATEX rated version available.



Operation limits

Capacity to 1000 m³/h
Head to 3660m
Maximum Pressure Standard design 2250 PSIG
Temperature to 450 °C
