High Pressure Gear Pumps

Home > Products > High Pressure Gear Pumps



External Gear Pumps    High Pressure Gear Pumps    Mono Block Gear Pumps

Highpressure Gear Pumps


High Pressure Gear Pumps

High pressure gear pumps produce high discharge pressures and metered flow because of positif displacement when discharge line is prestricted or completely closed an external relief valf is required to prevent motor overload and line breakage .

All gear pumps are self-primming allthough a foat valve is recommendet. Capacity varies directly with motor speed. The power required varies directly as capacity and pressure.

Because of the close internal tolerances pump be protecteal with a suitable filter loss in suction line must not exceed 0,5 kg/cm2

Using Areas

Burner pumps
For fuel-oil and oils

Specifications

Positive Displacement
With Hydraulic Balance
With Safety Walve
Special With Mechanical Seal
Special Steam Jacketed
Special Cast Iron

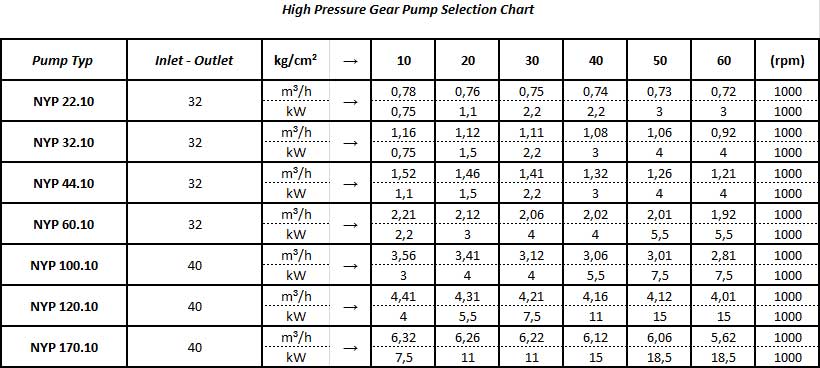

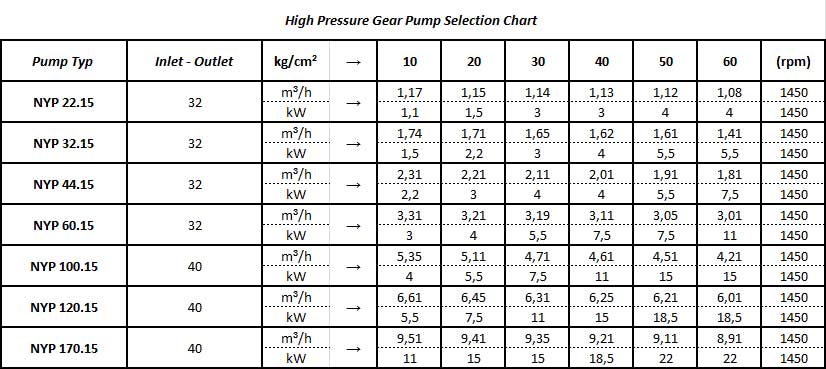

PUMP SELECTION CHART





  2D 3D PDF
NYP 32 Download Download Download
NYP 44 Download Download Download
NYP 60 Download Download Download
NYP 100 Download Download Download
NYP 120 Download Download Download
NYP 170 Download Download Download

Are you looking for a pump for your plant ?
